Textbook of Usability

Introduction

Buildings are the original designed environments. Long before software interfaces existed, architects and builders were solving the same fundamental problem: how to create spaces that serve human needs, accommodate human capabilities, and avoid human confusion. The usability of the built environment — how easily people can navigate, use, and feel comfortable in physical spaces — draws on the same perceptual, cognitive, and motor principles that govern software usability. This chapter examines the usability of buildings and physical spaces, with particular attention to wayfinding, evidence-based hospital design, and the emerging field of biophilic design.

Wayfinding

Wayfinding — the process of navigating through an environment to reach a destination — is one of the most direct applications of usability principles to the built environment. Getting lost in a hospital is not just frustrating; it delays care, increases anxiety, and wastes clinical staff time on giving directions.

Cognitive Foundations

Wayfinding relies on spatial cognition: the ability to form, maintain, and use a mental representation of the environment. Tolman Tolman, 1948 introduced the concept of the "cognitive map" — an internal representation of spatial relationships that allows navigation even along novel routes. Cognitive maps are constructed from landmarks (distinctive features), routes (sequences of turns and landmarks), and survey knowledge (a bird's-eye-view understanding of the layout) Arthur, 1992. People typically develop these in sequence: landmarks first, then routes connecting landmarks, and finally a survey-level map. Design that supports all three levels of spatial knowledge supports users at every stage of familiarity.

Lynch's Environmental Legibility

Kevin Lynch's The Image of the City Lynch, 1984 identified five elements that make urban environments navigable:

1. Paths: channels of movement (corridors, streets, walkways)
2. Edges: linear boundaries (walls, building facades, waterways)
3. Districts: recognisable areas with a common character (a department, a wing, a neighbourhood)
4. Nodes: focal points for decision-making (intersections, reception areas, lobbies)
5. Landmarks: distinctive reference points (a sculpture, a coloured wall, a distinctive architectural feature)

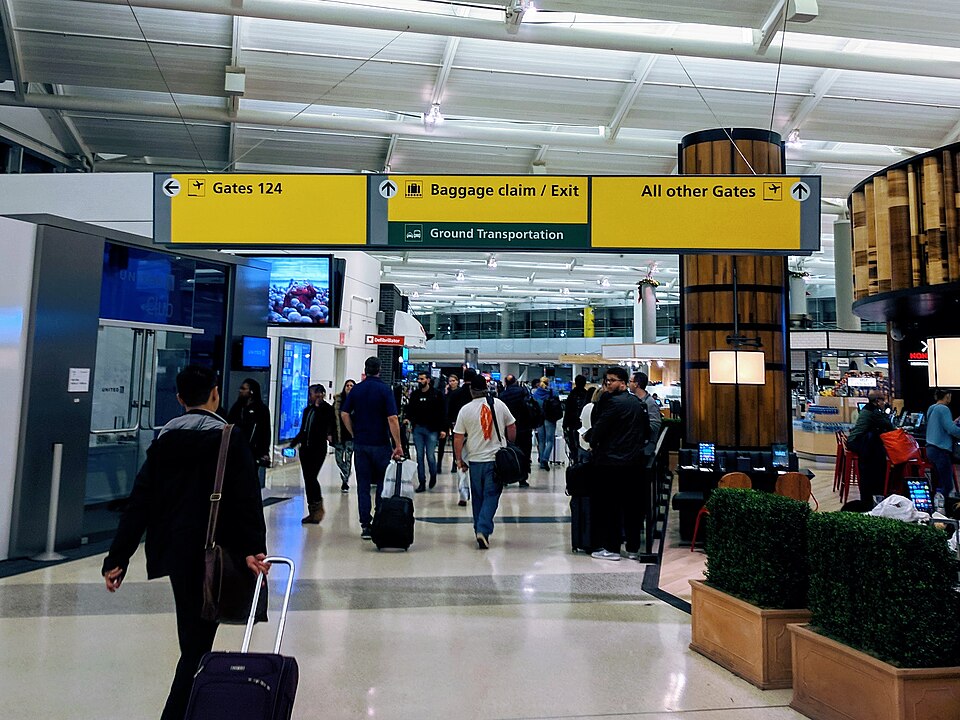

Signage and Environmental Graphics

Signage is the most common wayfinding intervention, but it is often poorly designed. Effective signage follows usability principles:

• Placement at decision points: signs should be located where the user needs to make a navigation decision, not midway along a corridor where no decision is required
• Visibility: signs must be readable at the distance from which they will be viewed (this is a direct application of visual acuity limits from Chapter 2)
• Consistency: a consistent system of symbols, colours, and terminology across all signs
• Progressive disclosure: showing only the destinations relevant at each decision point, not every possible destination in the building

Floor Plans and You-Are-Here Maps

You-Are-Here (YAH) maps are among the most studied wayfinding aids. Research reveals several common design failures:

• Misaligned orientation: YAH maps oriented with north at the top rather than aligned with the viewer's current facing direction require mental rotation, which is cognitively demanding and error-prone
• Excessive detail: maps that show every room and corridor overwhelm the viewer; simplified maps showing main routes and landmarks are more effective
• Missing "you are here" marker: surprisingly often, the map fails to clearly indicate the viewer's current location

Evidence-Based Hospital Design

Evidence-based design (EBD) applies the methods of evidence-based medicine to architectural design: design decisions are informed by the best available research evidence about the relationship between the physical environment and health outcomes.

Single-Patient Rooms

One of the most robust findings in evidence-based hospital design is the benefit of single-patient rooms. Compared with multi-bed wards, single rooms reduce hospital-acquired infections (by eliminating cross-contamination between neighbouring patients), improve sleep quality, increase patient satisfaction, reduce noise levels, and improve privacy for clinical conversations.

Noise Reduction

Hospital noise is a significant and well-documented problem. Typical hospital noise levels (45–68 dB in patient areas) exceed WHO recommendations (35 dB for patient rooms). Noise disrupts sleep, increases stress hormone levels, impairs communication, and contributes to clinician fatigue. Design interventions include sound-absorbing ceiling tiles, rubber flooring, decentralised nursing stations (reducing corridor traffic), and single-patient rooms. Each intervention has been evaluated in controlled studies, allowing evidence-based selection.

Daylight and Views

Access to natural light and views of nature have been studied since Ulrich's landmark study Ulrich, 1984, which found that surgical patients with window views of trees had shorter hospital stays, required less pain medication, and had fewer negative nursing notes than patients whose windows faced a brick wall. Subsequent research has confirmed and extended these findings Hamilton, 2009. Daylight exposure regulates circadian rhythms, improving sleep and reducing delirium in intensive care patients. Staff working in daylit environments report lower stress and higher job satisfaction.

Decentralised Nursing Stations

Traditional hospital designs place a central nursing station at the hub of a ward, with patient rooms arranged around it. Decentralised designs place smaller workstations closer to individual patients. Research shows that decentralised stations reduce nurse walking distance by 20–40%, increase the proportion of time spent on direct patient care, and improve response times to patient calls.

Post-Occupancy Evaluation

Post-occupancy evaluation (POE) is the systematic assessment of a building's performance after it has been occupied — the architectural equivalent of usability testing. POE methods include:

• Occupant surveys: standardised questionnaires measuring satisfaction with indoor environment quality (temperature, lighting, noise, air quality), space layout, and wayfinding
• Behavioural observation: tracking how people actually use spaces (where they sit, which routes they take, how they interact)
• Environmental measurement: objective data on temperature, humidity, light levels, noise levels, and air quality
• Performance metrics: for clinical buildings, health outcomes, infection rates, patient falls, and staff injury rates

Biophilic Design

Biophilic design is based on the biophilia hypothesis WILSON, 1984: that humans have an innate tendency to seek connections with nature, and that built environments that incorporate natural elements promote wellbeing.

Evidence Base

The evidence for biophilic design effects includes:

• Stress reduction: views of nature, indoor plants, natural materials, and water features reduce physiological stress markers (cortisol, heart rate, blood pressure)
• Cognitive restoration: exposure to nature improves attention (Attention Restoration Theory Kaplan, 1995) and working memory performance after cognitive depletion
• Pain reduction: Ulrich's surgical recovery study Ulrich, 1984 and subsequent replications demonstrate that nature views reduce pain medication requirements
• Productivity: office workers with views of nature report higher job satisfaction and take fewer sick days

Design Patterns

Kellert and Calabrese Kellert, 2015 identify three categories of biophilic design:

1. Direct experience of nature: plants, water, natural light, natural ventilation, animals
2. Indirect experience of nature: natural materials (wood, stone), natural colours, natural patterns (fractals, curves), images of nature
3. Experience of space and place: prospect (open views) and refuge (enclosed, protected spaces), organised complexity, transitional spaces between indoor and outdoor

Universal Design

Universal design — designing environments to be usable by all people, to the greatest extent possible, without the need for adaptation or specialised design — is the architectural parallel to digital accessibility. The seven principles of universal design Connell, 1997 are:

1. Equitable use
2. Flexibility in use
3. Simple and intuitive use
4. Perceptible information
5. Tolerance for error
6. Low physical effort
7. Size and space for approach and use These principles map directly onto the usability principles discussed throughout this textbook. "Simple and intuitive use" corresponds to Norman's conceptual models. "Tolerance for error" corresponds to error prevention and recovery. "Perceptible information" corresponds to the multimodal and redundant encoding discussed in Chapter 2.
